Thomas Grawe,^a Thomas Schrader*,^b Paolo Finocchiaro*,^c Salvatore Failla,^cGiuseppe Consiglio^d

Received: 7 August 2000 / Uploaded: 11 August

The effective and selective molecular recognition of amino acids in water is still a challenge in supramolecular chemistry. Because of the frequent use of the side chains of basic amino acids (Lys, Arg, His) for biological processes the molecular recognition of these amino acids by synthetic receptor molecules is of special interest [1]. Recently we presented a new macrocyclic receptor molecule, which binds arginine and lysine in a stereoselective fashion (Fig. 1) [2]. The mechanism of enantioselective recognition relies on two simultaneous cation-phosphonate interactions – i. e. binding of a specific cationic group of the amino acid to a specific phosphonate moiety in the receptor molecule. After docking the amino acid comes into van der Waals-contact of the chiral surface of the chiral bridging unit in 1 and one enantiomer is bound preferentially.

However, because of the relatively weak binding energy from the classical ammonium phosphonate interaction the overall binding constants were in the range of 10⁴ M^-1 only in DMSO. We asked ourselves, if strong binding in more polar solvents (preferably in water) could be achieved, if instead of two single phosphonates two chelating bisphosphonate moieties would be incorporated in a macrocycle, so that each cationic functionalitiy of the amino acid would be involved in a highly effective chelate complex. This lead to the design of macrocycle 2 which according to X-ray analysis and molecular modeling adopts a favorable open conformation [4]. The respective tetraanion should be able to perform an induced fit on approach of a dication with the correct spacer. Thus, a highly stable 1:1-complex could be formed, possibly even in water (Fig. 2).

The synthesis of macrocycle 2 and some related structures has recently been described by the Finocchiaro-group [3].³ In a very efficient one-pot synthesis 2,6-bis(bromomethyl)pyridine is directly treated with phosphonate-modified bisphenol A in a dipolar aprotic solvent with a mild base. Macrocycle 2 is obtained in 70% yield by simultaneous formation of four C-O-bonds. For mild and selective monodealkylation of all four dimethylphosphonates we modified a procedure originally described by Karaman et al [5]. Heating of an acetonitrile solution of 2 with 4 equivalents of dry lithium bromide for 1 week afforded, after recrystallization and dialysis, the pure receptor molecule 3 as the tetralithium salt. This compound is well soluble in polar solvents such as methanol and water, but insoluble in DMSO and acetonitrile.

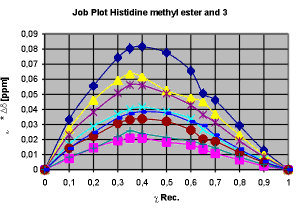

In a preliminary experiment, a 1:1-mixture of 3 and lysine methylester dihydrochloride produced significant complexation induced shifts of CH-protons both in the amino acid as well as in the receptor molecule. To check the complex stoichiometries with lysine, arginine, orhithine and histidine, Job-Plots were taken for each of the amino acid-complexes with 3 [6]. The result was remarkable: While the smaller amino acids histidine, ornithine and arginine produced a clear 2:1-stoichiometry, only lysine was bound by 3 in a clean 1:1-complex.

This is a good indication for the postulated binding mode: Only in lysine the two cationic groups are able to span the distance from one bisphosphonate moiety to the other [2].² By contrast, the smaller amino acids arginine, ornithine and histidine can only reach one bisphophonate moiety at a time, so that two amino acid molecules can be bound by receptor molecule 3. However, even in this case a relatively stable assembly may be formed, characterized by an array of alternating positive and negative charges according to energy minimizations [7]. Histidine is bound remarkably well in this 2:1-complex. The reason for this may lie in the special hydrogen bond donor-arrangement of the imidazolium ion: According to force-field calculations two histidine molecules can each be involved in a double chelate assembly with three phosphonate groups. While the ammonium functionality is complexed as usual by the bisphosphonate, the imidazolium ring acts as a hydrogen bond donor-bridge to one of the phosphonate moieties at the opposite end of the receptor molecule (Fig. 5) [8].

We then performed NMR titrations for each of the four complexes in methanol. The resulting binding curves were analyzed by nonlinear regression; the respective association constants are listed in table 1 [9].

In methanol all amino acids are bound strongly by 3. The four-point interaction in lysine’s complex with 3 is more powerful than the two-point interaction in the related assemblies with ornithine and arginine. However, in spite of its 2:1-stoichiometry, histidine is even superior to lysine. This is again in good agreement with the above discussed double chelate binding mode suggested by molecular modelling. In addition to the enhanced electrostatic attraction, histidine is able to form two strong hydrogen bonds between the imidazolium and and the bisphosphonate ions. This may contribute to its superior binding constant.

From methanol to water, the stoichiometry of all complexes is retained, but a 20-50 fold drop is observed in the association constants of the four investigated amino acids. This demonstrates the powerful competition of water molecules and is in accord with the experience made by other groups. However, this time, lysine is complexed 5-7 times more strongly than ornithine and arginine and even twice as strongly as histidine. If hydrophobic forces are weak as in our case, the contribution of hydrogen bonds in water is negligible, while electrostatic interactions represent the major attractive force. It is known, that in this respect the hard ammonium ion with its high charge density is superior to the softer guanidinium and also the imidazolium ion, where the positive charge is delocalized across several atoms [10]. In our case, the electrostatic attraction exerted by the second ammonium functionality of lysine is obviously much stronger than that of arginine’s guanidinium ion and even histidine’s imidazolium ion. Thus, receptor molecule 3 is moderateley selective for lysine in water.

a Due to the strongly hygroscopic character of both titration partners the d₄-methanol solution contained ~0.1% of water. Errors in Ka are standard deviations and were calculated to be ± 15-38%; ^b from Job-Plots.

Recently, Bell [11] and Dougherty [12] have published new binding motifs for arginine, which both operate very efficiently in water. While Bell’s rigid halfmoon-shaped receptor molecule is highly preorganized, Dougherty makes use of the p-cation interaction between electron-rich benzene rings and the guanidinium moiety, enforced by multiple electrostatic interactions with additional carboxylates in the periphery of the receptor molecule. However, both hosts are large molecules, accessible only through a multistep synthesis. In this respect our modular synthesis from two building blocks in one step may offer the advantage of a fast entry into a whole family of related tetraphosphonate hosts.

Conclusions and Outlook

In the future, we intend to incorporate chiral building blocks in our receptor molecules (preferably fom natural sources such as amino acids) as well as implement more rigid elements for a high degree of preorientation to achieve enantioselective and strong recognition of basic amino acids in water.

Experimental Section:

General Methods: Deuterium oxide (Merck) and methanol-d₄ (Merck) were purchased each in 99.8% purity. 2-hexanone (Aldrich) and lithiumbromide (Merk) were also purchased each in 99% purity.

17,17,40,40-Tetramethyl-1,10,24,33-tetraoxy[2](2,6)pyridino[2.1]paracyclo[2](2,6)-pyridino[2.1]paracyclophane- 12,20,35,43-tetraphosphonic acid monoethylester tetra lithium salt. 146.7 mg (0.1215 mmol) of the macrocycle, 46.3 mg (4.1 eq.) of lithiumbromide were dissolved in 7 ml of dry 2-hexanone under argon atmosphere and heated for 120 hours at 100°C. The residue was filtrated and washed with 2 hexanone. The salt was purified via dialysis; afterwards it contained only minute amounts of lithiumbromide. Yield: 116 mg (85%). ¹H-NMR (500 MHz, CD₃OD): d = 1.13 (t, 12 H, J = 7.3 Hz, CH₃CH₂O), 1.64 (s, 12 H, CH₃C), 3.81 (q, 8 H, J = 7.0 Hz, CH₃CH₂O), 5.26 (s, 8 H, CH₂O), 6.76 und 6.90 (m, 2 x 4 H_arom.), 7.69 (d, 4 H_py, J = 6.9 Hz), 7.76 (t, 2 H_py, J = 6.9 Hz), 7.86 (m, 4 H_arom.). ¹³C-NMR (125 MHz, CD₃OD) d = 17.44 (s), 31.87 (s), 39.00 (s), 43.37 (s), 61.74 (d, 5.0 Hz), 113.75 (d, 8.8 Hz), 122.36 (s), 123.92 (s), 125.31 (s), 129.36 (d, 82.3 Hz), 132.39 (s), 133.58 (d, 6.8 Hz), 139.68 (s), 144.36 (d, 12.5 Hz), 159.01 (d, 42,3 Hz). ³¹P-NMR (200 MHz, CD₃OD) d = 12.85. Anal. Cacld for C₅₂H₅₈N₂O₁₆P₄Li₄: C 55.83; H 5.23; N 2.50. Found: C 54.71; H 5.45; N 2.08. MS (FAB, glycine matrix, Xe): m/z 1125 (M + Li⁺, 55%).

1H NMR Titrations.

Ten NMR tubes were filled each with 0.8 mL of a solution of the host compound (c_guest = 0.5–4 mM) in a deuterated solvent (methanol-d₄, or D₂O). The guest compound (1.525 equiv corresponding to the guest) was dissolved in 0.61 mL of the same solvent, and the resulting solution was added with increasing volumes from 0 to 5 equiv. to the guest solution in ten NMR tubes.

Volume and concentration changes were taken into account during analysis. The association constants were calculated by non-linear regression methods.

Job plots. Equimolar solutions (10 mmol/10 mL, approx. 10 m M) of dication and tetraphosphonate were prepared and mixed in various amounts. ¹H NMR spectra of the mixtures were recorded, and the chemical shifts were analysed by Job’s method modified for NMR results.

Supporting Information:

1. NMR titrations in methanol

2.Job-Plots in methanol

4 3 7



4 2 5 8

4 2 8

3. NMR titrations in water

1 5 9 7 2 3

1 5 4 6 2 3

1 5 4 3 6

1 3 8

4. Tables



Table 1: Histidine in methanol

Eq Guest	Dd H1	Dd H2	Dd CH3		Ka /Error (averaged)
0,25	0,2093	0,0709	0,0255
0,5	0,3518	0,1235	0,0472
0,75	0,3934	0,1421	0,0567
1	0,4047	0,1475	0,0595
1,25	0,4084	0,1496	0,061
1,5	0,4097	0,1518	0,0614
2	0,4122	0,1516	0,0624
3	0,4132	0,155	0,0626		Ka =29000
5	0,4141	0,1551	0,0629		Error:+/-11%



Table 2: Ornithine in methanol:

Eq Guest	Dd H1	Dd H2		Ka /Error (averaged)
0,25	0,0799	0,0351
0,5	0,1242	0,0592
0,75	0,1439	0,0715
1	0,1533	0,0783
1,25	0,1569	0,0821
1,5	0,1596	0,0846
2	0,1639	0,0875
3	0,1647	0,0895		Ka =18000
5	0,1673	0,0908		Error:+/-30%



Table 3: Arginine in methanol

Eq Guest	Dd H1	Dd H2	Dd H3		Ka /Error (averaged)
0,25	0,02606	0,0347	0,04076
0,5	0,0405	0,0558	0,065
0,75	0,05018	0,0704	0,0905
1	0,052	0,0751	0,1018
1,25	0,0533	0,0804	0,1065
1,5	0,0541	0,0832	0,1094
2	0,0583	0,0874	0,1103
3	0,06	0,0942	0,1122		Ka = 30000
5	0,065	0,1012	0,1129		Error: +/-15%



Table 4: Lysine in methanol

Eq Guest	Dd H1	Dd H2	Dd H3		Ka /Error (averaged)
0,25	0,0307	0,044	0,0632
0,5	0,0512	0,084	0,0999
0,75	0,0627	0,1005	0,1258
1	0,0701	0,116	0,1371
1,25	0,0758	0,1227	0,1455
1,5	0,0797	0,1298	0,1515
2	0,0844	0,1388	0,1609
3	0,0896	0,1489	0,1677		Ka = 21000
5	0,0934	0,1557	0,1733		Error +/-35%



Table 5: Histidine in water

Eq Guest	Dd H1	Dd H2	Dd CH3	Dd H4	Dd H5	Dd H6	Dd H2	Ka/ Error (averaged)
0	0	0	0	0	0	0	0
0,25	0,0255	0,006	0,0063	0,0161	0,0275	0,0081	0,0126
0,5	0,0637	0,0148	0,0145	0,0432	0,0489	0,0204	0,0312
0,75	0,0977	0,0249	0,0258	0,0693	0,0489	0,0296	0,0479
1	0,1274	0,0384	0,0283	0,0864	0,0773	0,039	0,0624
1,25	0,1649	0,0428	0,0428	0,1166	0,0814	0,0501	0,0801
1,5	0,197	0,052	0,0514	0,1359	0,0971	0,0589	0,0946
2	0,232	0,0595	0,0592	0,1604	0,1126	0,0671	0,1087
3	0,2827	0,0718	0,0681	0,1951	0,1349	0,0778	0,1273	Ka = 650 M-1
5	0,3508	0,0844	0,0835	0,2235	0,162	0,0879	0,1456	Error = +/- 18%



Table 6: Ornithine in water

Eq Guest	Dd H1	Dd H2	Dd CH3	Dd H4	Dd H5	Dd H6		Ka/ Error (averaged)
0,25	0,01	0,0019	0,0021	0,0049	0,0055	0,0061
0,75	0,0231	0,0048	0,0048	0,0108	0,0115	0,0157
1	0,0344	0,0075	0,0081	0,0169	0,0169	0,0234
1,25	0,0414	0,0121	0,0122	0,0235	0,0235	0,0309
1,5	0,0552	0,0122	0,013	0,0275	0,0284	0,0376
2	0,0674	0,0165	0,0165	0,0344	0,0343	0,047
3	0,0848	0,0206	0,0212	0,0432	0,0441	0,0596
5	0,1109	0,0272	0,0269	0,0566	0,0566	0,0781		Ka = 450
6	0,12	0,03	0,0296	0,0615	0,0611	0,083		Error = +/- 33%



Table 7: Arginine in water

Eq Gast	Dd H1	Dd H2	Dd CH3	Dd H4	Dd H5		Ka/ Error (averaged)
0,25	0,0074	0,004	0,0036	0,0051	0,0037
0,5	0,0156	0,0084	0,0082	0,0109	0,007
0,75	0,0328	0,0175	0,0164	0,0229	0,0139
1	0,0543	0,03	0,0317	0,0401	0,0204
1,25	0,0632	0,0328	0,0317	0,0457	0,0254
1,5	0,0772	0,0396	0,0395	0,0549	0,0308
2	0,0989	0,0508	0,0498	0,0712	0,0383
3	0,1316	0,0658	0,0659	0,0939	0,0508
5	0,1847	0,0911	0,0911	0,1292	0,0722		Ka = 350
6	0,205004	0,10054	0,101	0,145	0,077		Error: +/-38%



Table 8: Lysine in water

Eq Guest	Dd H1	Dd H2	Dd CH3		Ka/ Error (averaged)
0,25	0,0077	0,0068	8,00000E
0,5	0,0126	0,0104	0,0011
0,75	0,0157	0,0121	0,0017
1	0,0197	0,0155	0,0021
1,25	0,0231	0,0178	0,00245
1,5	0,0255	0,0205	0,0028
2	0,0315	0,0252	0,0032
3	0,0398	0,0314	0,004
5	0,0532	0,0422	0,0052
6	0,059	0,04601	0,005705
Ka	1061,388	1135,354	1411,877
Ddsat	0,1052	0,080483	0,009067		Ka = 1200
Error [%]	+/-23,44	+/-26,05	+/-25,93		Error +/-25%



5. Job-Plots in water

1 3 4 9 6 7 2

1 3 5 4
