Molbank 2003, M327

www.molbank.org

3a,23-O-Isopropylidenyl-2a,19a-dihydroxy-urs-12-en-28-oic acid,

A New Pentacyclic Triterpene Isolated from Rubus aleaefolius as a New Cell Cycle Inhibitor

Qing-Chun Zhao1,2, Cheng-Bin Cui1,3,*, Bing Cai1, Xin-Sheng Yao2, and Hiroyouki Osada4

1 Tianjin Institute for Biomedicinal Research (TIBiR), 3F. D2-Building, Xinmao Technology Park,

   Huayuan Industrial District, Tianjin 300384, China. Tel.(+86)22-83712588, Fax (+86)22-83712688

* [email protected]
2 Shenyang Pharmaceutical University, Shenyang 110016
3 Marine Drug and Food Institute, Ocean University of China, Qingdao 266003
4 The Institute of Physical and Chemical Research (RIKEN), Saitama 351-0198, Japan

Received: 22 February 2002 / Accepted: 25 February 2002 / Published: 3 May 2003

Keywords:3a,23-O-isopropylidenyl-2a,19a-dihydroxy-urs-12-en-28-oic acid, pentacyclic triterpene, triterpene, Rubus aleaefolius, cell cycle inhibitor

Recently we have reported [1] six new cell cycle inhibitors belonging to plant polyphenolics from Rubus aleaefolius Poir. (family Rosacae), the source plant of a traditional Chinese medicine Cuye Xuangouzi, which is used also as a folk medicine to cure certain cancers in partial area of China. In a continuation of that work, this communication describes a new pentacyclic triterpene, 3a,23-O-isopropylidenyl-2a,19a-dihydroxy-urs-12-en-28-oic acid (1), obtained from Rubus aleaefolius Poir., which inhibits mammalian cell cycle at G0/G1 phase.

The roots (3 kg) of R. aleaefolius were extracted with 60% aqueous alcohol to give an alcoholic extract (435 g) possessing potential inhibitory activity on the cell cycle of tsFT210 cells [1]. The alcoholic extract was thus suspended in water and then extracted successively with chloroform and ethyl acetate to obtain an active ethyl acetate extract (78 g). This extract was further separated by repeated solvent-extraction, silica gel column chromatography, preparative HPLC and recrystallization procedure in a bioassay-guided manner to obtain pure 1 (26.8 mg).

Compound 1, white crystals (from MeOH), mp 196-198°C, [a]25D +31.7° (c 0.85, MeOH), gave positive Libermann-Burchard reaction, showing typical color for triterpenoids, and its molecular formula, C33H52O6 (molecular weight 544), was determined by negative HR-SIMS-MS measurement. The IR spectrum of 1 indicated the presence of OH (3449 cm-1), COOH (3400-2400 br and 1702 cm-1), C=C (1638 cm-1), and C-O (1040 cm-1) groups in 1.

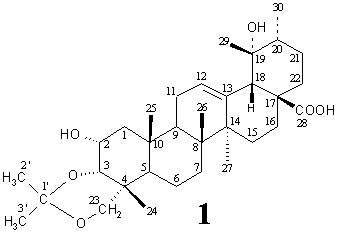

The 1H and 13C NMR spectra of 1 in CDCl3, analyzed by DEPT and PFG 2D NMR (1H-1H COSY, HMQC, HMBC and NOESY) techniques, resembled those of known 2a,3a,19a,23-tetrahydroxy-urs-12-en-28-oic acid [2] (2) except for additional signals due to an extra O-isopropylidenyl group (dH1.42 s, 2'-H3, dC 19.22 q, C-2'; dH 1.40 s, 3'-H3, dC 29.38 q, C-3'; and dC 98.67 s, C-1') [3] in 1, indicating that 1 is an isopropylidenyl derivative of 2. Location of the O-isopropylidenyl group at C-3 and C-23 positions could be determined on the basis of HMBC correlations between 3-H and C-1' and between 23-H and C-1'. The cis-relation between b-axial 2-H and b-equatorial 3-H was evidenced by the chemical shift and J values of 2-H (d 3.88 ddd, J=12.1, 4.1, 2.8 Hz) and 3-H (d 3.77 d, J=2.8 Hz) [4]. The chemical shift and J values of a-axial 16-H (d 2.53 td, J=13.4, 4.4 Hz) established both the 19a-OH stereochemistry and the cis-stereochemistry of the ring-D/E junction [5]. And eventually the structure of 1 was established as 3a,23-O-isopropylidenyl-2a,19a-dihydroxy-urs-12-en-28-oic acid.

Compound 1 inhibited the cell cycle progression of asynchronously cultured tsFT210 cells at the G0/G1 phase with the MIC value of 183.8 mmol/L.

UV lmax nm (log e) in MeOH: 206 (3.71).

IR nmax cm-1 (KBr): 3449 (OH), 3400-2400 br (COOH), 2987, 2973, 2936, 2877 (CH3 & CH2), 1702 (COOH), 1638 (C=C), 1459, 1380 (CH3 & CH2), 1200, 1150, 1040 (C-O).

Positive ESI-MS m/z: 567 [M+Na]+; negative ESI-MS m/z: 543 [M-H]-; negative HR-SIMS-MS m/z: 543.3686 (calcd for C33H51O6 [M-H]- 543.3690).

1H-NMR (600 MHz, CDCl3): d 1.28 (t, J=12.1 Hz, 1-Hax.), 1.71 (dd, J=ca.12.1, 4.1 Hz, 1-Heq.), 3.88 (ddd, J=12.1, 4.1, 2.8 Hz, 2-H), 3.77 (d, J=2.8 Hz, 3-H), 1.78 (br d, J=12.4 Hz, 5-H), 1.27 and 1.42 (both m, 6-H2), 1.30 (m, 7-Heq.), 1.63 (td, J=12.6, 4.1 Hz, 7-Hax.), 1.81 (dd, J=ca.11.1, 6.6 Hz, 9-H), 2.06 (ddd, J=18.7, 6.6, 3.3 Hz, 11-Heq.), 1.99 (ddd, J=18.7, 11.1, 3.7 Hz, 11-Hax.), 5.36 (dd, J=3.7, 3.3 Hz, 12-H), 1.04 (br d, J=12.7 Hz, 15-Heq.), 1.78 (ddd, J=13.4, 12.7, 4.1 Hz, 15-Hax.), 2.53 (td, J=13.4, 4.4 Hz, 16-Hax.), 1.58 (dm, J=13.4 Hz, 16-Heq.), 2.536 (s, 18-H), 1.39 (m, 20-H), 1.28 and 1.71 (both m, 21-H2), 1.66 and 1.80 (both m, 22-H2), 3.30 and 3.66 (both d, both J=12.1 Hz, 23-H2), 0.71 (3H, s, 24-H3), 0.97 (3H, s, 25-H3), 0.72 (3H, s, 26-H3), 1.29 (3H, s, 27-H3), 1.21 (3H, s, 29-H3), 0.95 (3H, d, J=6.6 Hz, 30-H3), 1.42 (3H, s, 2'-H3), 1.40 (3H, s, 3'-H3). The above signal assignments were based on the results of PFG 2D NMR (1H-1H COSY, HMQC, HMBC and NOESY) experiments.

13C-NMR (150 MHz, CDCl3): d 42.36 t (C-1), 65.33 d (C-2), 76.01 d (C-3), 36.12 s (C-4), 42.07 d (C-5), 17.76 t (C-6), 32.47 t (C-7), 40.27 s (C-8), 47.12 d (C-9), 38.12 s (C-10), 23.72 t (C-11), 129.34 d (C-12), 138.05 s (C-13), 41.15 s (C-14), 28.24 t (C-15), 25.41 t (C-16), 47.81 s (C-17), 52.92 d (C-18), 73.17 s (C-19), 41.24 d (C-20), 26.05 t (C-21), 37.56 t (C-22), 68.20 t (C-23), 16.92 q (C-24), 17.02 q (C-25), 17.24 q (C-26), 24.66 q (C-27), 184.13 s (C-28), 27.49 q (C-29), 16.25 q (C-30), 98.68 s (C-1'), 19.22 q (C-2'), 29.38 q (C-3'). The above signal assignments were based on the results of DEPT and PFG 2D NMR (1H-1H COSY, HMQC, HMBC and NOESY) experiments.

Acknowledgements: We thank Prof. Q. Sun, Shenyang Pharmaceutical University, for collection and identification of the plant materials. This work was supported by the Found from NNSFC (C.-B. Cui, No.39825126), the Found from Ministry of Science and Technology (C.-B. Cui, No.G1998051113), China, and the Found for Cheung Kong Scholar (C.-B. Cui) from Ministry of Education of China.

References

1. Cui, C.-B.; Zhao, Q.-C.; Cai, B.; Yao, X.-S.; Osada, H. J. Asian Nat. Prod. Res. 2002, 4, 243-252.
2. Seto, T.; Tanaka, T.; Tanaka, O.; Naruhashi, N. Phytochem. 1984, 23, 2829-2834.
3. Li, B.-Z.; Wang, B.-G.; Jia, Z.-J. Phytochem. 1998, 49, 2477-2481.
4. Kojima, H.; Ogura, H. Phytochem. 1989, 28, 1703-1710.
5. Aquino, R.; Simone, F. D.; Vincieri, F. F.; Pizza, C.; Gacs-Baitz, E. J. Nat. Prod. 1990, 53, 559-564.
