Molbank 2003, M332

www.molbank.org

1,2-Bis(p-phenylcarbamoyl-oxy-amino-cyclohexylidene)ethane

Elena Scortanu* and Adrian A. Caraculacu

Romanian Academy, Institute of Macromolecular Chemistry "Petru Poni", Aleea Grigore Ghica Voda, Nr. 41 A, Iasi 6600, Romania

Phone: 0232-260332, Fax: 0232-211299, E-mail: [email protected]

Received: 22 February 2003 / Accepted 4 June 2003 / Published 8 June 2003

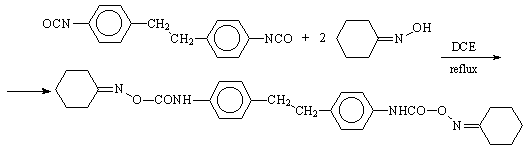

The experimental procedure follows the general synthesis of blocked isocyanates [1, 2]. Thus, a mixture of 1,2-bis(p-isocyanato-phenyl)ethane (4,4'-dibenzyl diisocyanate) [3, 4] (66 g, 0.25 mol) and cyclohexanone oxime (65 g, 0.57 mol) was dissolved in 450 mL 1,2-dichloroethane and refluxed while stirring for 2-4 h. The product of reaction precipitated with the reaction progressed. The progress of the reaction was followed by IR spectroscopy. After cooling, the solid was isolated by filtration, washed several times with acetone and dried at 100°C. The product has a white crystalline aspect (117 g, 95.51% yield).

M.p.: Between 241-250°C a mesophase was observed followed by a decomposition process (thermo-optical method).

IR (KBr, cm-1): 3350 ms (NH), 2920 ms, 2850 m (CH2), 1730 s (CONH), 1700-1680 m (sh, C=N oxime), 1580 m (NHCO, p-Ar), 1500-1490 s (p-Ar), 1410 s (Ar, CH2-N), 1320-1310 mw (CH2), 1170 s (CH2), 1130 m (C-O, C-N), 1000 s (C-O), 910 ms (C-C, skeletal), 880 m, 860 m (C-N), 830 s (p-Ar), 740 m, 700 m (C-N).

1H NMR (60 MHz d, DMSO-d6, 70°C): 8.97 (s, NH, 2H), 7.32, 7.22, 7.08, 6.9 (m, Ar, 8H), 2.86, 2.72 (d, CH2-Ar, 4H), 2.35, 1.7, 1.25 (m, CH2, 20H).

Elemental analysis: Calculated for: C28H34N4O4: C%= 68.55; H%= 6.99; N%= 11.42. Found: C%= 68.04; H%= 7.05; N%= 11.53.

References:

1. Savostianoff, E. Inf. Chem. 1981, 119-126, 216-217, 1312.

2. Kovalenko, L. G.; et al. Plast. Massy 1986, 11, 34.

3. Caraculacu, A. A.; et al., Rom. Pat. 81,947 1983.

4. Caraculacu, A. A.; Caraculacu, G. J. Macromol. Sci. Chem. 1985, A22, 631.
